From a part no one has drawn before.

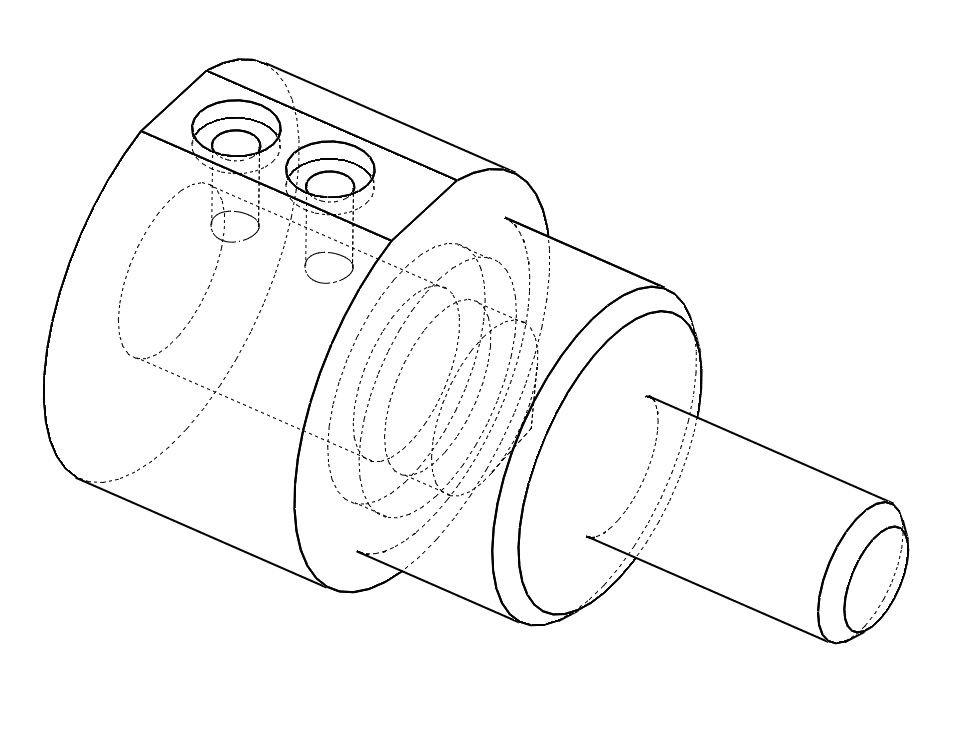

INPUT · .SLDPRT3D part
Your 3D part in SolidWorks.
READS · CHOOSES · DRAFTS
MINUTES, NOT HOURS

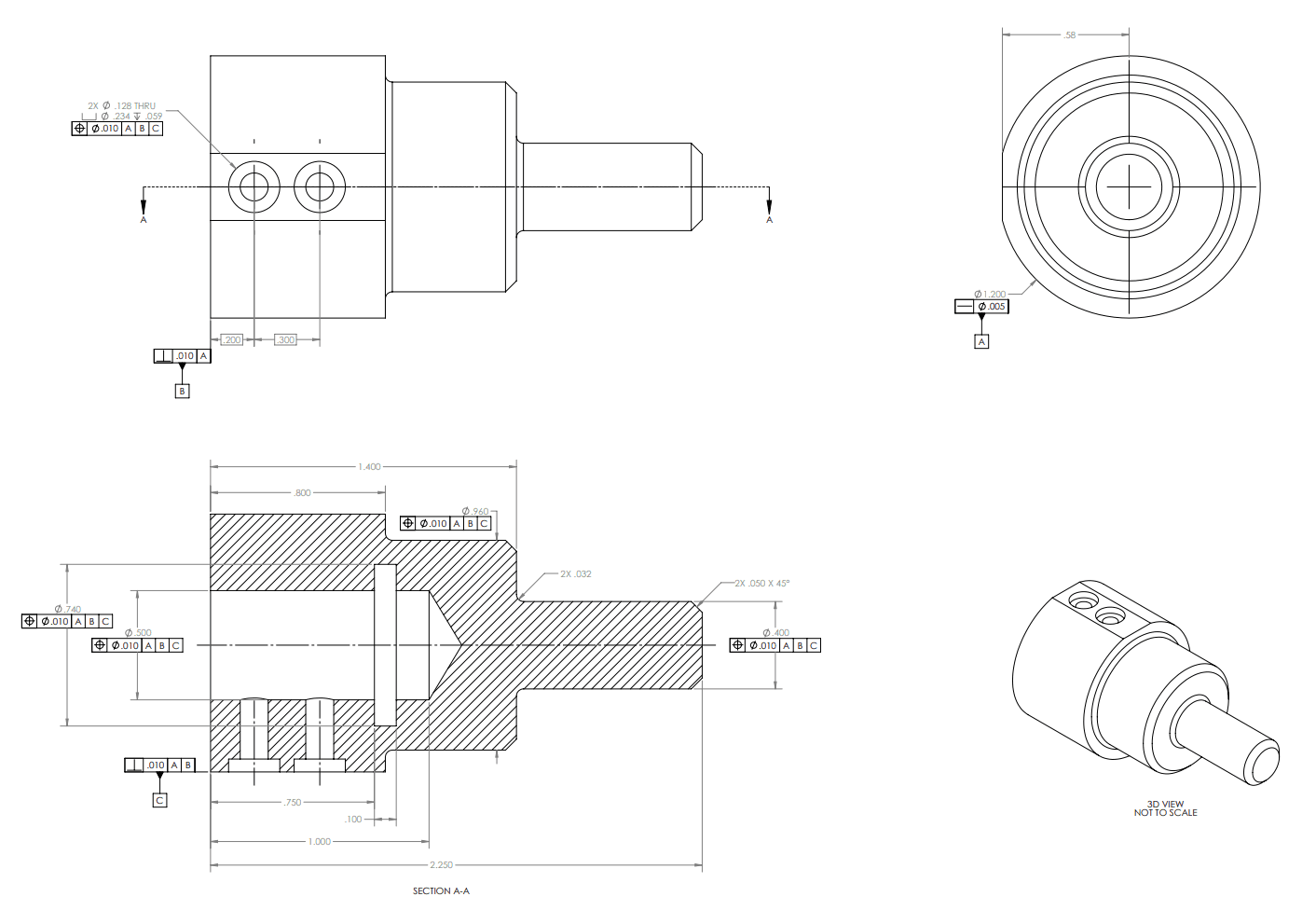

OUTPUT · .SLDDRW● editable
An editable .SLDDRW with views, dimensions, and tolerances placed for you.
First Draft sits inside SolidWorks and produces 2D drawings the way a careful drafter would: views, dimensions, tolerances, title block. Ready for you to refine, not redo.
The part features and geometry of your SLDPRT file. Down to the last fillet.
Views and sections. The choices a careful drafter would make on paper, made before the kettle boils.
Dimensions placed and arranged logically, setting you up for success.
Native SolidWorks output. Nudge anything. You ship the sheet that has your name on it.
If you’d like to try First Draft for something you’re working on, please get in touch.
BUILT FOR SOLIDWORKS · FOR THE FIRST 80%
